Dometic ECD - Self Contained Marine Air Conditioner

Dometic ECD

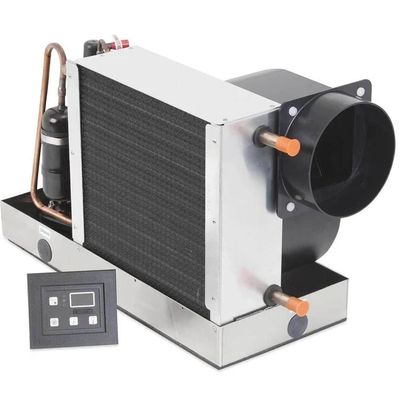

Dometic ECD Marine Air Conditioner with Keypad, Cable and 6" Duct ring. ECD16K-HV $1899 In Stock

Enjoy ideal temperatures on your boat year-round with Dometic ECD self contained Marine air conditioning kits. Dometic ECD EnviroComfort Marine Air Conditioners are available in size's 16,000 10,000 and 6,000 btu. Dometic ECD Self Contained Marine Air Conditioner Kits contain all the Major components needed for a quality A/C system. ECD16K-HV, ECD10K-HV, ECD6K-HV.

Dometic ECD Self Contained Marine Air Conditioner - Designed as a DIY Replacement, value-priced Marine Air Conditioner.

Dometic's Best selling self contained unit is the ECD16K-HV - Dometic 16000 btu Marine Air Conditioner. Model numbers are ECD6K-HV 6,000 BTU, ECD10K-HV 10,000 BTU, ECD16K-HV 16,000 BTU.

Dometic ECD units are Replacements for Marine air VCD, VCP, and VRP.

Also Cruisair Units SXR, SXF - with additional adaptor Plate purchase to use existing keypad cut out.



  • Reverse Cycle Heat.
  • Dometic ECD Marine Air Conditioners are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.
  • The blower can be rotated to a horizontal or vertical position for easier connection to the duct.
  • The ECD includes a compact digital control display that features a bright green LED and large buttons.
  • The ECD includes a 15 foot display cable.
  • The ECD includes a 6" Duct Mount Ring.
  •  For added installation convenience, the plastic electrical box can be mounted remotely.

Dometic ECD EnviroComfort Retrofit Kits (R-410A)

The ECD6K will replace a 5,000 to 7,000 BTU/hr unit; the ECD10K will replace an 8,000 to 11,000 BTU/hr unit; and the  ECD16K will replace a 12,000 to 16,000 BTU/hr unit.


The Dometic ECD Self Contained Retrofit  Kit replaces your older A/C unit and control for the current model.  Previously sold under Cruisair & Marine Air, now  merged under one Dometic brand.


1 Year Warranty

Dometic ECD - Downloads

Dometic ECD Spec Sheet and Dometic ECD Installation Manual

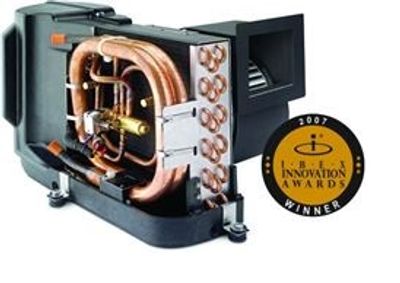

Dometic Turbo Dtu Marine Air Conditioner

Dometic Turbo Dtu Marine Air Conditioner

Dometic Turbo DTU - Self Contained Marine Air Conditioner - R410A - DTU6 thru DTU16



Direct Replacement for CRUISAIR & MARINE AIR Units:  STX , STQ, and VTD.

Works with Cruisair Smxir, SmxIIab, Smxht and Q Keypads. Also works with Marine Air Passport I/O keypad.

Dometic Turbo DTU6, DTU8, DTU10, DTU12, DTU16

Dometic  Marine Air Conditioners - Powerful, Quiet & Compact With No Drain  Pan Worries. The Dometic Turbo series completely revolutionized  self-contained boat air conditioning with patented innovations in marine  air conditioning system design, winning the IBEX Innovation Award.

The rust-free molded composite drain pan has three drains for the rapid removal of condensate water.

A vibration-isolation mounting system results in significantly quieter, virtually vibration-free performance.

Download Dometic Turbo Dtu Spec Sheet

01-DTU-Turbo-specsheet-33349 (pdf)

Download

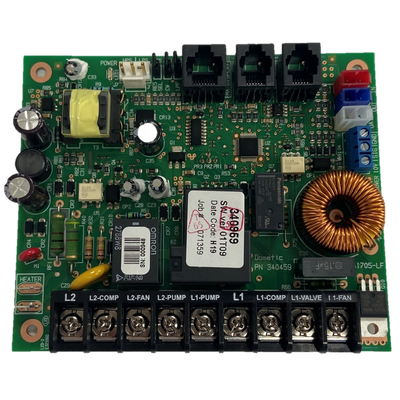

U Circuit board

Unity Circuit board comes with ECD and DTU units.
